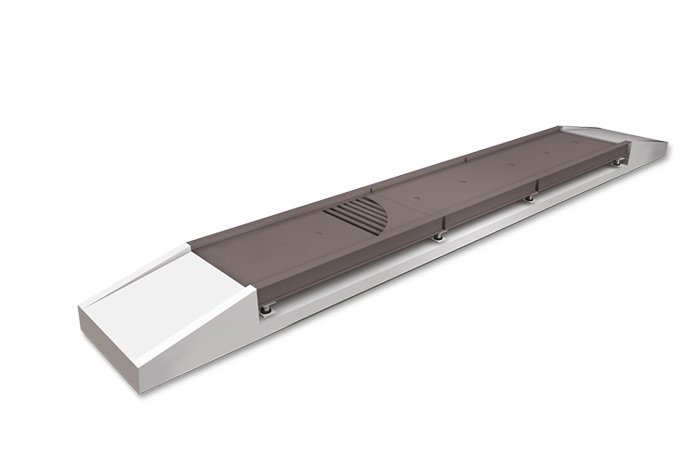

RAMP SCALES WITH A STEEL PLATFORM JU-NS 40 60 80 100 TONS
Car scales JU-NS appeared after long-term research and are designed for weighing cars. The ramp design of these scales, made of steel, has ideal characteristics that can make weighing high-quality and reliable. You can use the JU-NS car scales to measure the weight of any cars, as the model range of these scales is represented by different sizes of the platform and NPV.
The JU-NS model can be successfully used in a wide variety of industries, for example, ex-proof models with explosion protection are produced specifically for use in explosive areas, and models equipped with relay outputs for actuators are used in filling systems.
Features:
- Ease of installation
- Ease of use
- Durability
- Ideal for weighing vehicles due to its height
- Ease of cleaning and transportation of scales
The standard set of scales includes:
- Esit SC sensors
- The installation node of which is on an elastomer support
- Weighing terminal ART
- Passport for car scales JU-NS
Features of ramp car scales:
- Mounting unit on an elastomer support
- A large number of sensors
- Low profile
- Dust covers
- Steel pipes for cable laying
- Lightning protection
- Automatic identification of the label number
- Memory for 100,000 records
- Definition of transport with a permanent container
- Additionally 10 + 2 information fields
- Summary of reports for a certain period in a text file and for printing
- Defining the report format
- Data search by all criteria
- Connecting the printer
- Print labels and reports
- Compliance with metrological standards
- CE certificate
| ** Strain gauge | |
| Model | SC |
| Degree of protection | IP68 |
| Mounting node | SC-EL |
| Compensated operating range | -10 ° C … + 40 ° C |
| Operating temperature range | -40 ° C … + 80 ° C |
| *** Terminal | |
| Model | PWI-T |
| Degree of protection | IP54 |
| Supply voltage | 90-265 V AC 60 W |
| Operating temperature range | -10 ° C … + 40 ° C |
| Junction box J-Box | |
| Degree of protection | IP66 |
| Material | aluminum |
| Environment | |
| Compensated operating range | -10 ° C … + 40 ° C |
| Operating temperature range | -40 ° C … + 80 ° C |
| Supply voltage | 220V AC <300W (together with monitor and printer) |
* It is possible to set a double weighing interval.
** You can get data about strain gauges and mounting nodes used in scales in the catalog
*** You can get data about terminals used in scales from the catalog
