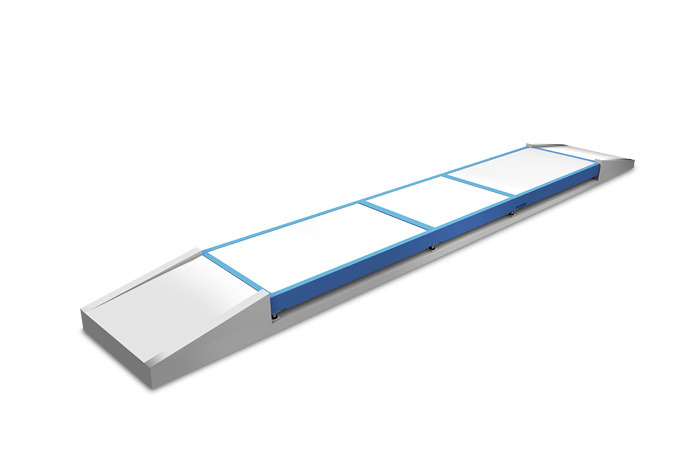

RAMP SCALES WITH REINFORCED CONCRETE PLATFORM CS 40 60 80 TONS
The solid platform of CS car scales is made of reinforced concrete. In other words, the platform of these vehicle scales are steel-framed modules covered with reinforced concrete. Distinctive features of platforms made of this material are high strength, reliability in operation, long service life and low price.
The CS model car scale is a modular design, each module has a width of 350 cm. The total length of the platform varies from 4 to 24 meters. The largest weighing limit of CS car scales is 40-60-80 tons
The frame of automobile scales is assembled at the place of their installation.
Features:
- Mounting unit on an elastomeric support
- A large number of sensors
- Steel pipes for cable laying
- Lightning protection
- Automatic identification of the label number
- Memory for 100,000 records
- Definition of transport with a permanent container
- Additionally 10 + 2 information fields
- Summary of reports for a certain period in a text file and for printing
- Defining the report format
- Data search by all criteria
- Connecting the printer
- Print labels and reports
- Compliance with metrological standards
- CE certificate
| ** Strain gauge | |
| Model | SC |
| Degree of protection | IP68 |
| Mounting node | SC-EL |
| Compensated operating range | -10 ° C … + 40 ° C |
| Operating temperature range | -40 ° C … + 80 ° C |
| *** Terminal | |
| Model | PWI-T |
| Degree of protection | IP54 |
| Supply voltage | 90-265 V AC 60 W |
| Operating temperature range | -10 ° C … + 40 ° C |
| Junction box J-Box | |
| Degree of protection | IP66 |
| Material | aluminum |
| Environment | |
| Compensated operating range | -10 ° C … + 40 ° C |
| Operating temperature range | -40 ° C … + 80 ° C |
| Supply voltage | 220V AC <300W (together with monitor and printer) |
* It is possible to set a double weighing interval.
** You can get data about strain gauges and mounting nodes used in scales in the catalog
*** You can get data about terminals used in scales from the catalog
