AUTOMOTIVE PORTABLE SCALES OF AXIAL LOAD AS 30 TONS
If it is necessary to measure the load on the axle of the vehicle, portable axle weighing scales are used. They take turns measuring the mass of the car’s axles in a static position, and then sum up the data obtained. This model is capable of measuring loads up to 30 tons. Weighing results are displayed on the screen or sent to print. The printed document contains information about the car number, as well as the weight of each axle.
Scales of the portable series cannot be used to determine the weight of the cargo that is in the car.
Such auto scales are convenient in that they can be moved from one place to another and reassembled: it will take a minimum of time. They do not require special preparation of the place for installation, special power supply, etc. In addition, axial weighing scales are compact, they take up very little space.
We offer both compact and built-in scale models.
- Mortise scales can be installed almost anywhere: the requirements for installation locations are minimal.
- It is even easier to work with a portable scale model: the portable platform is made of light aluminum, and at the same time it is strong.

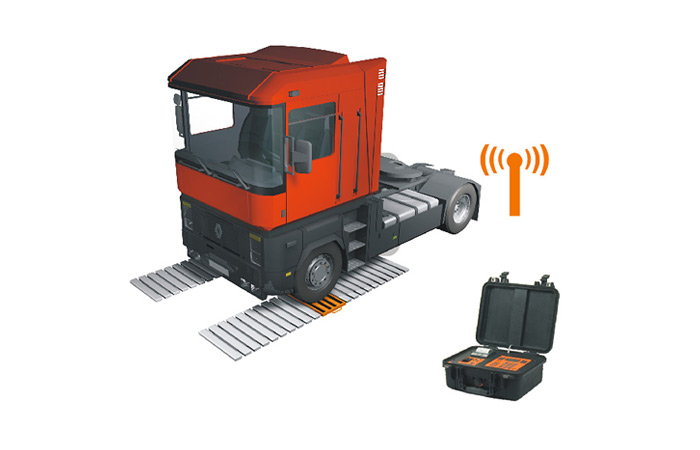

The design of the scales includes two weighing platforms, as well as a weighing terminal. Communication between them is carried out using wireless communication. Its presence allows you to get rid of problems related to cable laying and its malfunctions.
Features of AS-30 vehicle scales for axial weighing:
- Wireless connection
- Aluminum platform
- Digital measurement
- Overload warning
- Registration in memory of up to 7 axes
- Total number of axles
- The total weight of the axle group
- Overload indication
- Print date, time, car number
- Connection to the cigarette lighter of the car
| Specifications | AS30000 |
| Metrological characteristics | |
| Load | 30T |
| Discretion | 5 kg |
| Non-linearity | 15 kg |
| Constancy | 5 kg |
| Time of measurement | 0.5 s – 3 s |
| Platform | |
| Material | Aluminum |
| Degree of protection | IP 65 |
| Platform size (1 pc) | 428x660x42 mm |
| Platform weight (1 piece) | 25 kg |
| Wireless platform | |
| Platform size (1 pc) | 1500x650x42 mm |
| Platform weight | 25 kg |
| Battery | 2 pcs AA 1.5 V (Alkaline) |
| Battery life | 3 months |
| Range of action | 20 m |
| Indicator | |
| Model | PWI-A |
| Material | Plastic case |
| Degree of protection | IP65 |
| Indicator | 128×64 graphic LCD |
| Keyboard | 21 moisture-proof with a tactile effect |
| Battery | 12V 7.2 Ah |
| Term of work | 5 years (1500 charge-discharge cycles) |
| Charging time | 24 hours |
| Work time | 8 hours |
| High-voltage | 220 A or 12V from a car cigarette lighter |
| Terms of use | |
| Moisture | %10 %95 |
| Operating temperature range | -30°C … +60°C |
| Storage temperature | -40°C … +75°C |
