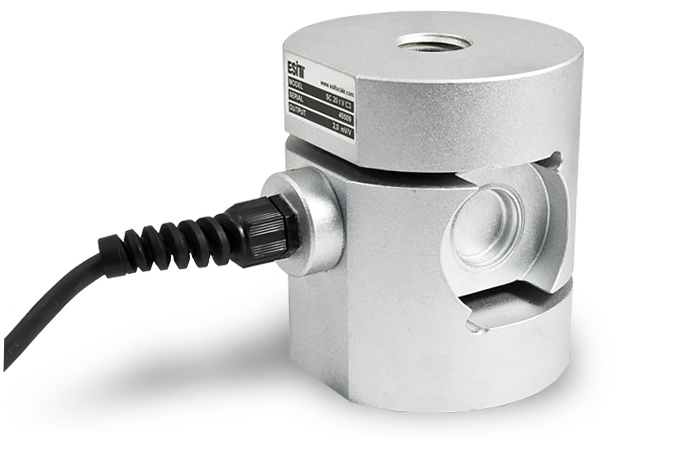

The SC-V cross beam strain gauge was developed for use in high-performance electronic mass and compression force measurements in industrial environments. The accurate and reliable SC-V load cell provides high resistance to lateral forces and overload conditions.
SC-V strain gauges are suitable for harsh industrial conditions, they are also used in small car scales, platform scales, tank weighing systems, automatic weighing instruments and process weighing. With its alloy steel construction coated with anti-corrosion paint and its strain gauge area welded to a stainless steel cover, the SC-V is IP68 rated, meaning they are completely protected.
*This product is not used in tension mode with a load of more than 10 tons.
Features:
- Features certified to OIML R60 standards
- Hermetic-hermetic strain gauge
- Resistant to lateral forces
- Able to work in difficult conditions
- Industrial protection IP68
| Model | Nominal load | Minimum interval | Maximum overload a |
| SC-V 10 | 10,000 kg | 1200 g | 15000 kg |
| SC-V 20 | 20,000 kg | 2400 g | 30,000 kg |
| Rated load (Emax) | kg | 10,000, 20,000 |
| Accuracy class (OIML R 60) | C1 C3 C4 | |
| Discreteness by class ( n LC ) | 1000 3000 4000 | |
| Minimum weighing interval (V min ) | Emax / 3500 Emax / 5000 Emax / 5000 | |
| A common mistake | % Emax | ≤ ± 0.05 ≤ ± 0.02 ≤ ± 0.015 |
| Error of return to zero (DR) | % Emax | 0.025 |
| Minimum load | % Emax | 0 |
| Maximum overload | % Emax | 150 |
| Permissible horizontal overload | % Emax | 100 |
| Destructive overload | % Emax | 300 |
| Deformation (at Emax) | mm | ≤0.3 |
| Maximum excitation voltage (Umax) | IN | 15 |
| RCP (Cn) | mV / V | 2 ± 0.1% |
| Zero balance | % Cn | ≤ ± 1.0 |
| Input impedance | Ω | 385 ± 20 |
| Output resistance | Ω | 351 ± 3 |
| Insulation resistance | MΩ | ≥500 |
| Compensated operating range | ° С | -10 … + 40 |
| Operating temperature range | ° С | -40 … + 80 |
| Sensor material | steel | |
| Protection class (according to EN60529 classification) | IP68 | |
| Cable length | m | 13 |
| Cable diameter | mm | 8 |
| Mass | kg | 10 |
| Package weight and dimensions | cm / kg | 25x25x18 / 10.3 |
