Strain gauges CA 10-20-25 t

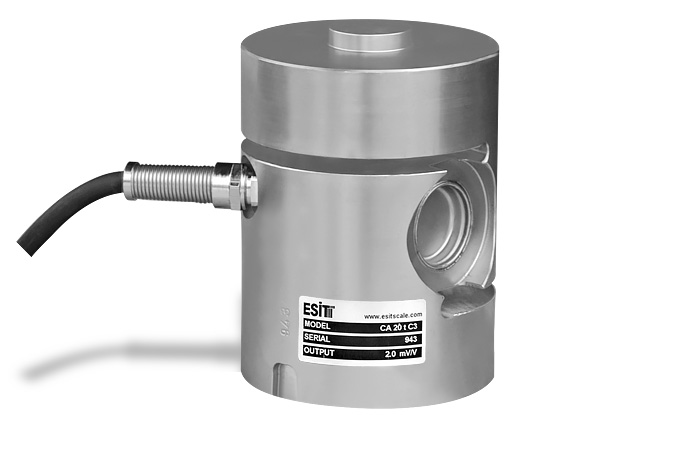

Model CA compression sensors are used in heavy duty weighing equipment and measure compression force. The reliable design of such a sensor guarantees its excellent resistance to overloads, including lateral ones.
This model is used mainly in car and platform scales. Due to the features of its design, the strain gauge SA is used even in difficult conditions.
The sensor is covered with anti-corrosion paint, meets the IP68 standard.
| Model | Nominal load | Minimum interval | Maximum overload |
| CA 10 | 10,000 kg | 1100 g | 15000 kg |
| CA 20 | 20,000 kg | 2300 g | 30,000 kg |
| CA 25 | 22000 kg | 2800 g | 40,000 kg |
| Rated load (Emax) | kg | 10,000, 20,000, 25,000 |
| Accuracy class (OIML R 60) | C1 C3 C4 | |
| Discreteness by class ( n LC ) | 1000 3000 4000 | |
| Minimum weighing interval (V min ) | Emax / 5000 Emax / 6000 Emax / 8850 | |
| A common mistake | % Emax | ≤ ± 0.05 ≤ ± 0.02 ≤ ± 0.015 |
| Error of return to zero (DR) | % Emax | 0.0050 0.0033 0.0025 |
| Minimum load | % Emax | 0 |
| Maximum overload | % Emax | 150 |
| Permissible horizontal overload | % Emax | 100 |
| Destructive overload | % Emax | 300 |
| Deformation (at Emax) | mm | ≤0.3 |
| Maximum excitation voltage (Umax) | IN | 15 |
| RCP (Cn) | mV / V | 2 ± 0.1% |
| Zero balance | % Cn | ≤ ± 1.0 |
| Input impedance | Ω | 380 ± 20 |
| Output resistance | Ω | 350 ± 3 |
| Insulation resistance | MΩ | ≥500 |
| Compensated operating range | ° С | -10 … + 40 |
| Operating temperature range | ° С | -40 … + 80 |
| Sensor material | steel | |
| Protection class (according to EN60529 classification) | IP68 | |
| Cable length | m | 15 |
| Cable diameter | mm | 8 |
| Mass | kg | 8 |
| Package weight and dimensions | cm / kg | 25x25x18 / 8.3 |
